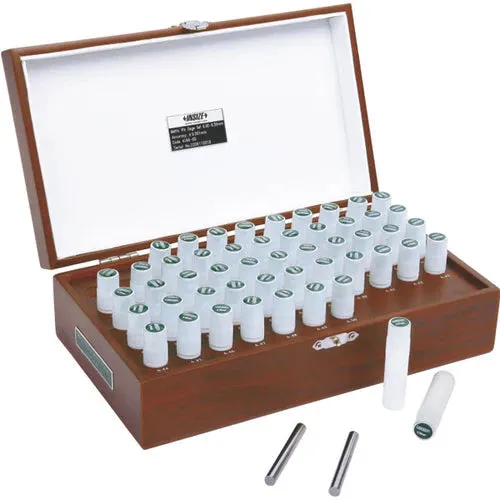

The Insize 51 Pin Gauge Set (Model: 4166-10) is meticulously crafted for precise measurement of hole diameters within the range of 9.5 mm to 10 mm. This set is an essential tool for quality assurance and precise measurements in various engineering and manufacturing environments.

Key Features:

• Measurement Range:
  Designed to cover pin gauge sizes from 9.5 mm to 10 mm, offering flexibility for a variety of applications.

• Precision Tolerance:
  Each pin gauge is manufactured with a tolerance of ±1 μm, ensuring high accuracy essential for critical measurement tasks.

• Material Quality:
  Made from premium-grade steel with a hardness rating of HRC 62-65, providing durability and resistance to wear, suitable for extensive use.

• Compliance:
  Adheres to DIN 2267 Grade 1 standards, confirming the set meets stringent quality and performance requirements.

• User-Friendly Design:
  Engineered for easy handling, allowing for quick and precise measurements in both workshop and field conditions.

Applications:

• Quality Control:
  Perfect for verifying the dimensions of drilled or machined holes to ensure compliance with specified tolerances.

• Manufacturing and Engineering:
  A vital tool for precision measurement tasks across mechanical engineering, automotive, aerospace, and other industrial sectors.

• Assembly Verification:
  Assists in confirming the fit of parts during assembly processes, thereby enhancing product reliability.
